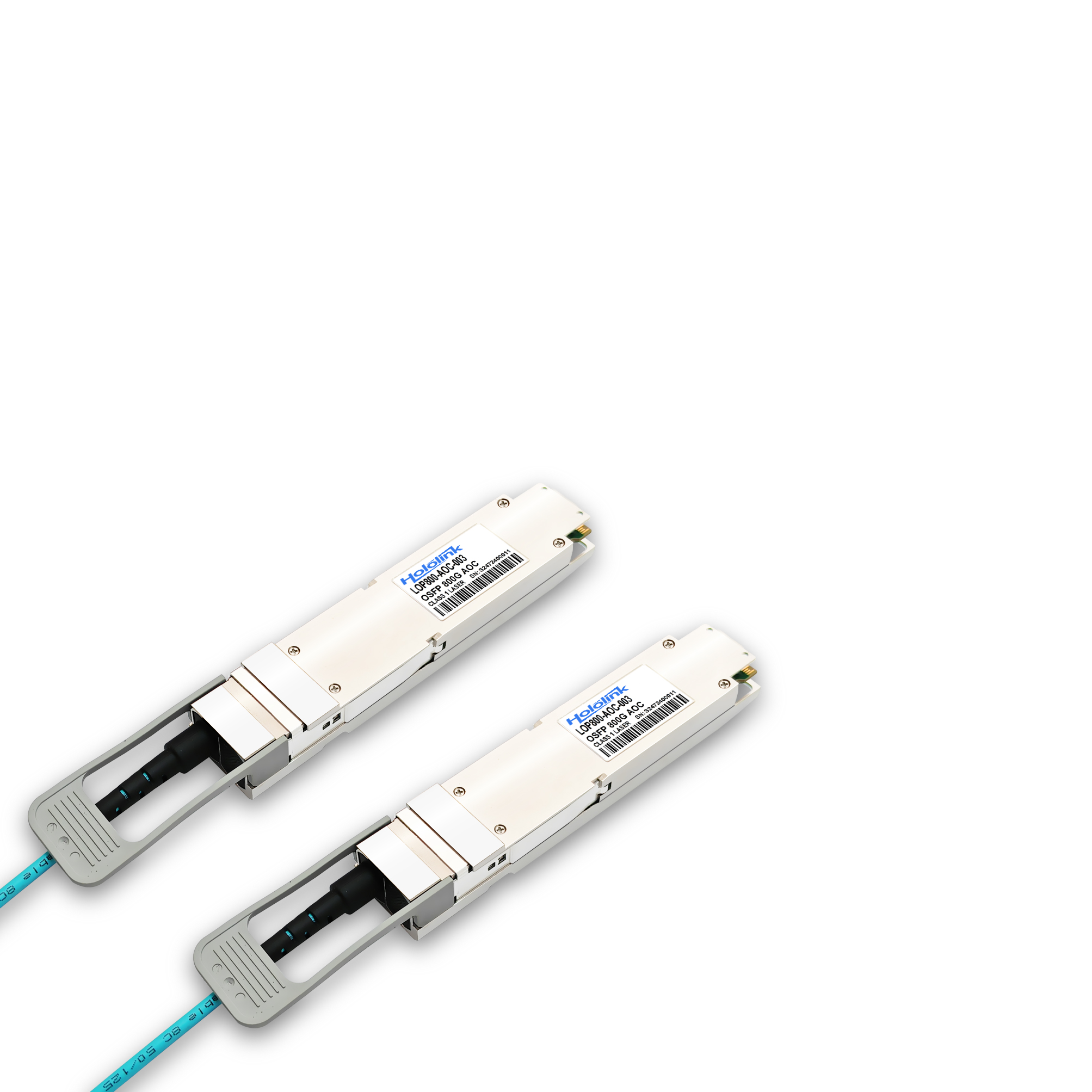

LOP800-AOC-xxx Active Optical Cable provides optimized solutions for interconnections inside datacenter at 800Gb/s up to 100m. Product is available OSFP form factors to satisfy the different host system requirements. Transmission is based on VCSEL 850nm with electrical driver, while Receiver side is based on PIN photodetector and TIA. Module is equipped with DSP to provide channel equalization, PAM4 retimer and supports electrical lanes loss on host system with up to 30dB.
LQD800-AOC-xxx Active Optical Cable provides optimized solutions for interconnections inside datacenter at 800Gb/s up to 100m. Product is available QSFP-DD form factors to satisfy the different host system requirements. Transmission is based on VCSEL 850nm with electrical driver, while Receiver side is based on PIN photodetector and TIA. Module is equipped with DSP to provide channel equalization, PAM4 retimer and supports electrical lanes loss on host system with up to 30dB.
|
Part No. |
Description |
Data Rate |
Wavelength |
Distance |
Connector |
Temp |
Download |
|
LOP800-AOC-xxx |
OSFP 800G AOC |
8×106.25G 800G |
850nm |
3-100m |
MPO-16 |
C |
|
|
LQD800-AOC-xxx |
QSFP-DD 800G AOC |
8×106.25G 800G |
850nm |
3-100m |
MPO-16 |
C |
- 8×106.25Gb/s transmission each lane
- Host side up to 30dB of electrical loss
- DSP for equalization and performance
- Cable length: 3m, 10m, 50m, 100m
- Operating temperature -5ºC to 65ºC
- CMIS 4.0 standard interface
- Intra-datacenter short connections
800G OSFP AOC
