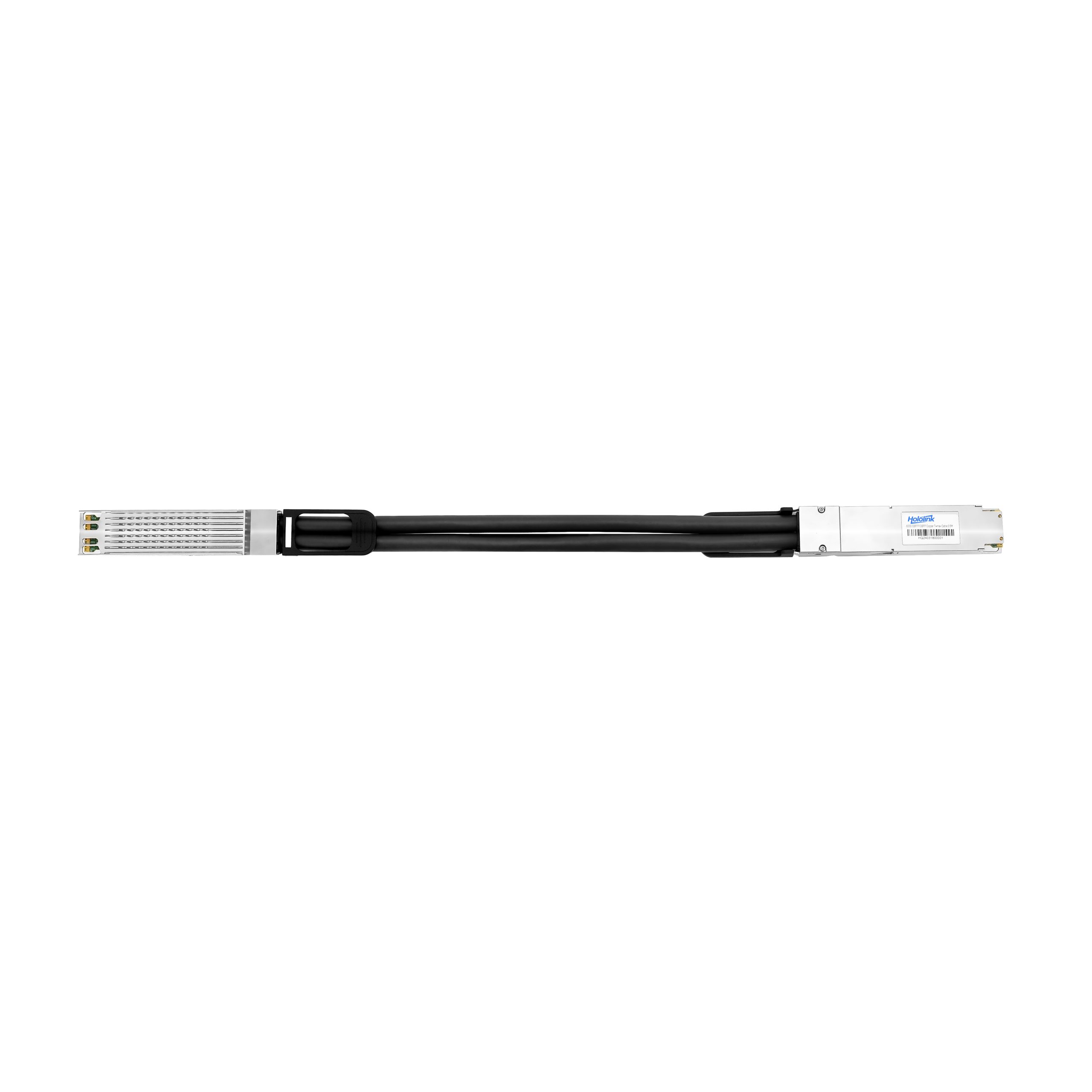

LOP800-2OP-D-xxx is OSFP passive copper cable assembly feature sixteen differential copper pairs, providing eight data transmission channels at speeds up to 100Gbps(PAM4) per channel, and meets 2X400G Ethernet and InfiniBand Next Data Rate(NDR) requirements. Available in 26AWG and 30AWG wire gauges, this 2X400G copper cable assembly features low insertion loss and low crosstalk.
|
Part No. |
Description |
Data Rate |
Cable Type |
Distance |
Connector |
Temp |
Download |
|
LOP800-2OP-D-xxx |
OSFP-2x400G 800G OSFP DAC |
2x400G 800G |
26AWG/30AWG |
1-2.5M |
N/A |
C |
- Supports aggregate data rates of 2X400Gbps(PAM4)
- Optimized construction to minimize insertion loss and crosstalk
- 26AWG and 30AWG cable
- 3.3V Power supply
- Temperature Range: 0~70°C
- RoHs Compliant
- 2x400G Ethernet(IEEE 802.3ck)
- InfiniBand NDR
800G OSFP DAC
